Retroreflective photoelectric sensor IRB-EXP

cylindricalinfraredexplosion-proof

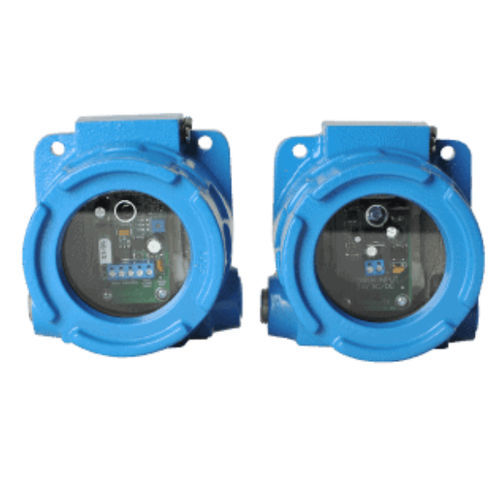

EXPLOSION-PROOF PHOTOEYE Thru beam configuration Wide sensing angle for increased reliability 115 ft. operating range NEMA 4X enclosure DESCRIPTION IRB-EXP EXPLOSION PROOF PHOTO BEAM OVERVIEW Designed for explosive environments, the rugged IRB-EXP explosion proof photo beam is used as a safety, reversing, or opening device in conjunction with automatic operators. The IRB-EXP explosion proof photo beam sensor features a 24° sensing angle for easy installation and alignment and 115-ft. operating range. The lens-less design of the IRB-EXP makes it less sensitive to fog, dust, snow and sunlight, making it a more accurate explosion-proof photoeye. FEATURES OF OUR IRB-EXP EXPLOSION-PROOF PHOTOEYES Designed to operate in areas with explosive environments NEMA 4 and 7 housing NEC Class I, Groups B, C & D, Class II, Groups E, F & G CSA certified, CENELEC certified, EExd IIC Copper free aluminum with epoxy finish Potentiometer range adjustment to allow for more precise tuning to site Thru beam design is not affected by shiny surfaces Modulated infrared to reduce the effect of sunlight, fog, rain, dust and dirt No focusing lens
