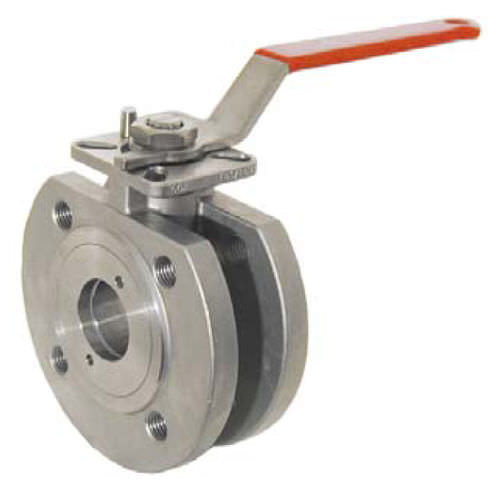

Ball valve ZK seriesleverfor controlflange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Body
- flange
- Number of channels
- 2-way
- DN
25 mm
(0.984 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 180 °C
(356 °F)
Description
DESIGN
1-piece designed wafer-type ball valve, full
bore, mounting pad for actuator according
to ISO 5211, Anti Static Device and TA-Luft
approval (DN15... DN100.
OPERATION
Rotation of the handle through 90°.
(Handle is reversible through 180°).
CONNECTION
Flange DN15-DN200.
DN15 - DN50: Flange dimensions and threaded
holes according to PN 40.
DN65 - DN200: Flange dimensions and
threaded holes according to PN 16.
Flanges PN16- DN65 will be delivered in 4-hole
execution!
PRESSURE RANGE
Almost vacuum up to nominal pressure (max.
+80°C). Forhighertemperatures please referto
the Pressure- Temperature-Diagram.
