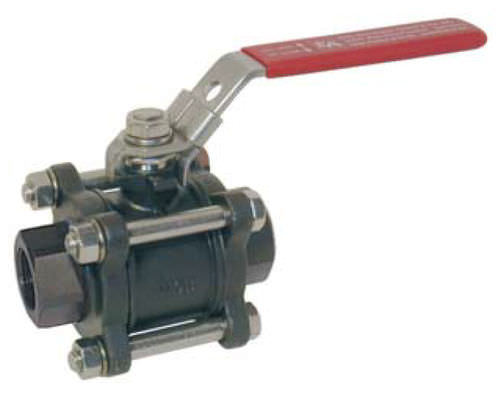

Ball valve ZE seriesmanualfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- for control
- Media
- for water
- Body
- carbon steel
- Number of channels
- 2-way
- DN
15 mm
(0.591 in)- Pressure
Max.: 64 bar
(928.2 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -30 °C
(-22 °F)
Description
CONNECTION
Female B.S.P. thread VT - 2", DIN 2999
Butt welding DN15-DN50.
PRESSURE RANGE
Almost vacuum up to Nominal pressure.tUp
to 80X.)
For higher temperatures please refer to the
Pressure-Temperature-Diagram.
NOMINAL PRESSURE
V: -1": PN64
DN15-DN25: PN64
1%"-2": PN40
DN32 - DN50: PN40
TEMPERATURE RANGE
-30BC upto+180*C
MATERIALS
Body:
Ball:
Ball seal:
Spindle seal:
Handle :
Steel
Stainless steel 1.4301
PTFE-glassfiber reinforced
PTFE
Stainless steel 1.4301,
Plastic coated
