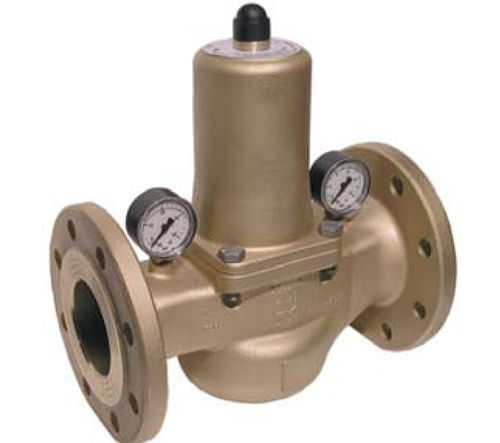

Pressure-reducing valve SD24 series
Add to favorites
Compare this product
Characteristics
- Function
- pressure-reducing
Description
DESIGN
Pressure-reducing valve made of bronze with
integrated strainer
CONNECTION
Flange connection DN65 ... DN80
Flanges acc. to DIN EN 1093-3
PRESSURE SETTING
By rotation of the adjustment stem.
PRESSURE GAUGE
two-sided G Va
PRESSURE RANGE
Inlet pressure: 16bar (25bar on request)
Outlet pressure: 1...7bar
(DVGW-version up to 6 bar)
TEMPERATURE RANGE
up to max. 95°C
MEDIA
water, neutral non-adhesive liquids,
compressed air, neutral and non-combustible
gases.
