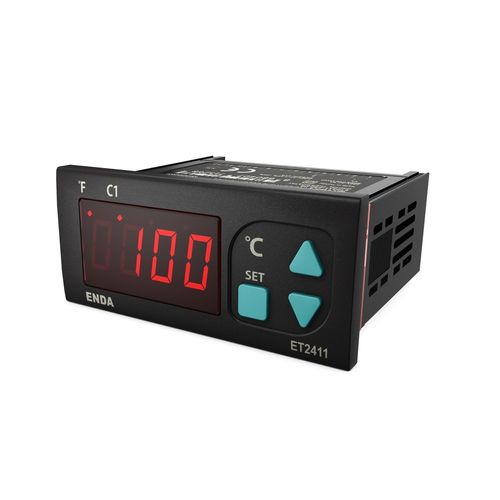

Digital temperature regulator ET2411

thermoelectricIP65

Single NTC probe input Offset value can be entered for NTC probe Relay output for cooling or heating control In case of sensor failure, relay state can be configured as On or O Upper and lower limits of the set point can be adjusted Temperature unit can be selected as °C or °F CE marked according to European Norms Ambient/Storage temperature - 0 ... +50 / ° C -25... +70°C(without icing) Relative Humidity - Max. humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C. Protection Class - According to EN60529; Front panel: IP65 Rear panel : IP20 Control Control Type - Single-setpoint and alarm control. Control Algorithm - On-Off Control Hysteresis - Adjustable between 0.1 and 20.0°C/F. Electrical Characteristics Supply - 230V AC +%10 -%20, 50/60Hz or 12/24V AC/DC %10 Power Consumption - Max. 3VA Wiring - Power connector : 2.5mm² screw-terminal, Signal connector : 1,5mm² screw-terminal conenction. Line Resistance - Max. 100ohm EMC - EN 61326-1: 2013 (Performance criterion B is satisfied for EN 61000-4-3) Safety Requirements - EN 61010-1: 2012 (Pollution degree 2, overvoltage category II) Indicator - 4 digits, 12.5mm, 7 segment red LED Data Retention - EEPROM (Min. 10 years)
