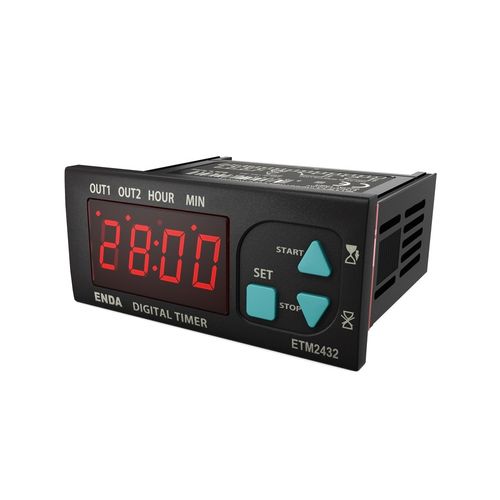

Digital timer ETM2432

77 x 35mm sized. Dual contact output for timing control. External start, reset, and gate inputs. Hours - minutes and minutes - seconds indications can be selected. Scale 0:01 .... 99:59 minutes 0:01 .... 99:59 hours Time increasing and decrement steps can be adjusted. Counting in downward direction. Start and stop process can be controlled by the front panel. 8 different warning tones. Upper and lower limits can be adjusted to setpoint value. CE marked according to European Norms. Environmental Conditions Ambient/Storage temperature - 0 ... +50 / ° C -25... +70°C Relative Humidity - Max. humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C. Protection Class - According to EN60529; Front panel: IP65 Rear panel : IP20 Height - Max. 2000m Housing Housing Type - Suitable for flush-panel mounting according to DIN 43 700. Dimensions - W77xH35xD71mm Weight - Approx. 198g (After packing) Dual contact output for timing control External start, reset, and gate inputs Hours - minutes and minutes - seconds indications can be selected Scale 0:01min....99:59min, 0:01h....99:59h Time increasing and decrement steps can be adjusted Counting in downward direction Start and stop process can be controlled by the front panel 8 different warning tones Upper and lower limits can be adjusted to set point value CE marked according to European Norms Environmental Conditions Ambient/Storage Temperature - 0...50 ºC / -25...70 ºC Relative Humidity - 80% relative humidity for temperatures up to 31°C, decreasing linearly to 50% at 40°C Protection Degree - According to EN 60529 Front panel: IP65, Rear panel: IP20 Height - Max. 2000m Electrical Characteristics
