Sample divider

verticalfiltration unit

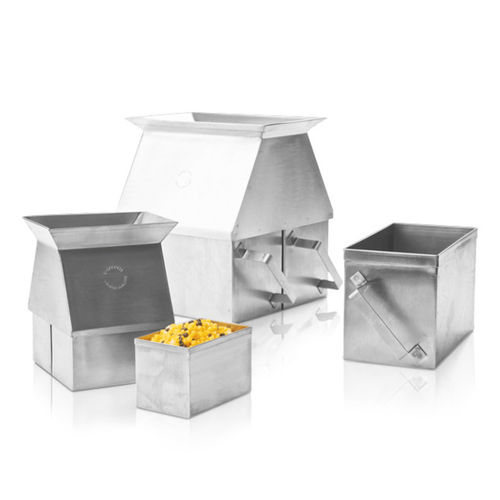

Endecotts hand held sample dividers will subdivide material samples into two smaller portions by a single pass.Further subdivisions can be attained by multiple passes. Each subdivision created with an Endecotts sample divider retains the characteristics of the original sample. Two different sample divider versions are available: One with 1/2" slot width and one with 1/4" slot width. Product Advantages Unit consists of divider plus 3 receiving boxes Stainless steel with slot widths Will subdivide material samples into two smaller portions by single pass Each subdivision retains the characteristics of the original sample Features 1) Sample divider 1/2" slot width version - 1) Divider body: length x width x height - 22.90 x 21.60 x 13.35 cm 1) Divider box: length x width x height - 18.42 x 9.86 x 12.07 cm 1) Weight - 3 kg 1) Volume - 1.9 litres 1) Slots - 12 - slots 1/2" wide x 3 15/16" long 2) Sample divider 1/4" slot width version - 2) Divider body: length x width x height - 13.30 x 13.30 x 10.15 cm 2) Divider box: length x width x height - 9.86 x 6.35 x 5.24 cm 2) Weight - 1 kg 2) Volume - 0.3 litres 2) Slots - 12 - slots 1/4" wide x 2 7/8" long
