Optical data cable 3053

ruggedmulti-strandfor accelerometers

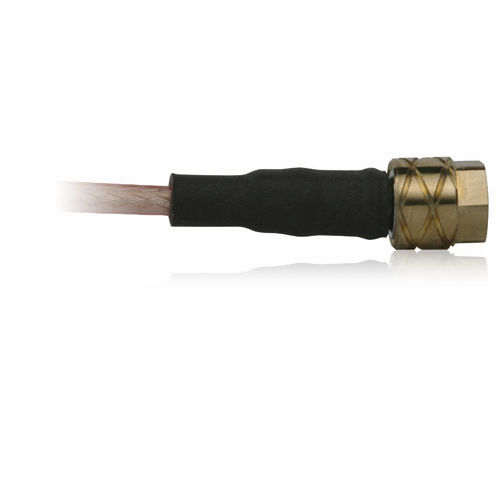

The 3053VM1 is a premium low-noise cable for use with charge mode piezoelectric accelerometers that utilize an M3 threaded connector and a BNC connector at the instrumentation end. The proprietary cable jacket is made from extruded water resistant PFE Teflon for highest reliability. Additionally, the cable is 20% more flexible than most Teflon® jacketed cables. The raw cable, M3 connector and pin assemblies, are made in-house to ensure the highest quality product available, making this a cable that is unique to the industry. These cables are 100% tested for insulation resistance, capacitance and triboelectric noise. The M3 connector’s glass dielectric provides a reliable hermetic seal for operation in humid atmospheres. The 3053V is a premium low-noise cable for use with charge mode piezoelectric accelerometers with an M3 threaded connector. A 10-32 NF connector is provided at the instrumentation end of the cable. The proprietary cable jacket is made from extruded water resistant PFA Teflon for highest reliability. Additionally, the cable is 20% more flexible than most Teflon cables. All critical parameters are 100% tested including cable capacitance, which is recorded and provided with each cable. The cable’s hermetic connectors are manufactured in-house using a glass fired dielectric insert that provides a hermetic seal, and superior mechanical strength. The connector’s unique coupling nut has less friction for easier fastening without galling. The coupling nut is designed for fastening with a wrench while knurled for easy attachment with the fingers.
