Optical data cable 3061

BNCcoaxialfor accelerometers

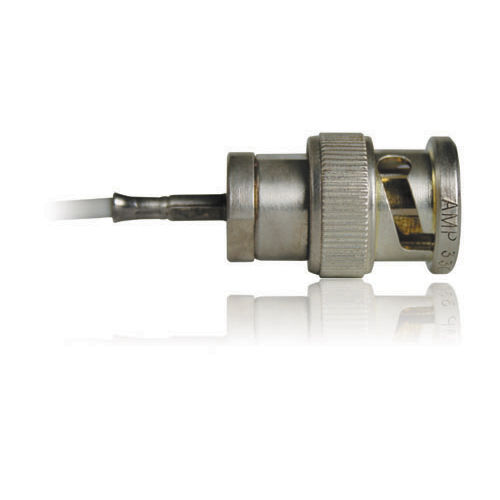

The Endevco model 3061 cable is a non-low noise treated version of the 3090CM12 cable assembly. This cable has a male 10-32 miniature coax connector at one end and a male BNC at the other. The model 3061 is temperature rated from -85°F to +350°F. The 3061A coaxial cable assembly is designed specifically for use with IEPE accelerometers with a 10-32 female socket. A BNC plug, at the instrumentation end is compatible with many signal conditioners and data acquisition equipment. The cable outer jacket is made of extruded silicone providing high flexibility and moisture protection. The center conductor consists of Teflon insulated stranded wire for exceptional reliability. Endevco’s exclusive 10-32 connector is made of stainless steel with a glass-to-metal seal, an industry exclusive, to protect it from moisture. The 10-32 plug’s center pin is welded to the cable’s center conductor providing high pull strength and low noise.
