Optical data cable 6917B series

high-temperatureruggedtwisted pair

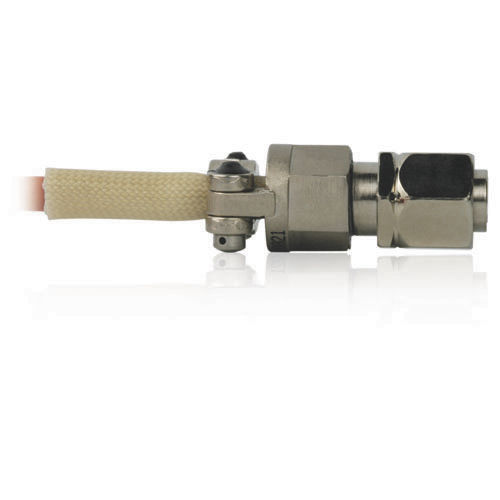

Low noise, twisted pair cable assembly, Teflon Jacket, 7/16-27 (2 pin socket) to pigtail, 10 feet The 6917B is a low-noise cable assembly consisting of a twisted pair of low-noise treated Teflon jacketed wires with a nickel-plated copper outer shield. The rugged field replaceable plug features a specially designed assembly with high force contacts and alumina inserts for high temperature operation. The removable backshell provides for ease of field replacement. The opposite end of the cable is terminated in pigtails. The stranded wire is tinned and the low-noise treatment is removed at the cable’s end for user convenience. This cable is typically used in turbofan environments at temperatures up to 500°F (260°C). • For use with differential high impedance output piezoelectric accelerometers • Critical parameters 100% tested • High temperature to 500°F (260°C) • Ideal for use in engine test cells • Rugged 7/16-27 UNS-2B Connector
