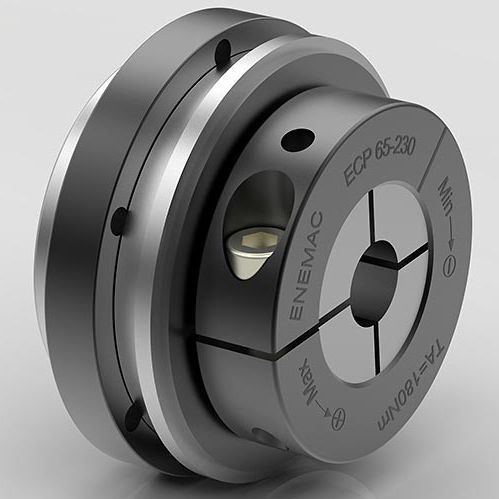

Ball bearing torque limiter ECP seriesfriction-freefrictioncompact
Add to favorites
Compare this product
Characteristics
- Operation
- ball bearing, friction-free, friction
- Other characteristics
- compact
- Torque
Min.: 0.5 Nm
(0.3688 ft.lb)Max.: 2,000 Nm
(1,475.1243 ft.lb)- Diameter
Min.: 5 mm
(0.2 in)Max.: 100 mm
(3.94 in)- Rotational speed
Min.: 3,000 rpm
(18,849.56 rad.min-1)Max.: 4,000 rpm
(25,132.74 rad.min-1)
Description
Torques
0,5–2.000 Nm
Properties
with integrated ball bearing (for direct mounting of a pulley) and mounting friendly clamping hub
optional corrosion protected version KS
Applications/Specific features
toothed belt drives
the drive element does not need its own bearing on the shaft
shaft connection with clamping hub
• for indirect drives, with integrated ball bearing
• with clamping hub, easy installation
• for high radial load, compact performance
• optional corrosion protected version
