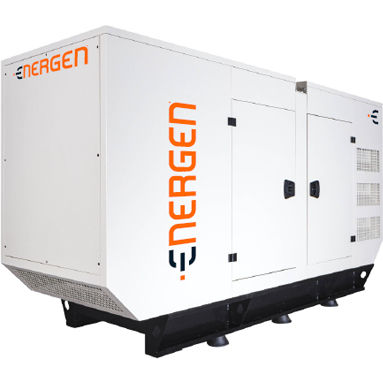

Diesel generator set E10P5Ythree-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Cooling system
- water-cooled
- Applications
- emergency
- Options and accessories
- open type
- Power in kVA
9 kVA, 10 kVA
(12.24 hp, 13.6 hp)- Rated capacity
7.2 kW, 8 kW
(9.8 hp, 10.9 hp)- Voltage
230 V, 400 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Length
180 cm
(71 in)- Width
70 cm
(28 in)- Height
100 cm
(39 in)- Weight
385 kg, 485 kg
(848.78 lb, 1,069.24 lb)
Description
Power explanations according to ISO 8528 standard:
Ambient conditions according to standard ISO 8528-1: 2005: 1000 mbar, 25ºC, 30% relative humidity
Prime Power (PRP)
Maximum power which a generating set is capable of delivering continuously whilst supplying a variable electrical load when operated for an unlimited number of hours per year according to ISO 8528. 10% overload capability is available for a period.
Emergency Standby Power (ESP)
Maximum power at variable load under the operating conditions for which a generator set is capable of delivering, up to 200 operating hours per year, according to ISO 8528. Overload is not allowed.
