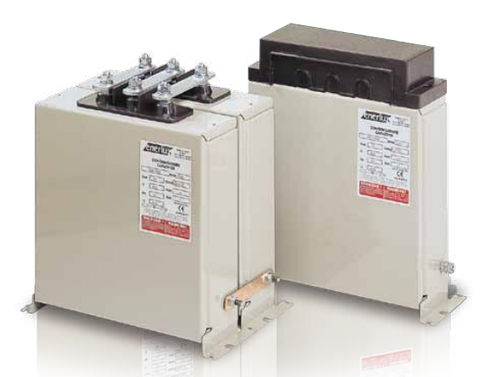

Encapsulated capacitor UTF series

three-phasePFC

CONSTRUCTION TECHNOLOGY The UTF series, three-phase modular capacitors consist of three PRM-type single-phase elements, delta connected and inserted in a casing made of sturdy sheet steel painted with epoxy resins in the color RAL 7035. The special construction features of this casing ensure better dissipation of the heat generated inside it and an improvement in the working conditions of the capacitive units they contain. The casing is equipped with brackets for fixing to the ground and an outer cover to protect the terminals made of fiberglass-reinforced nylon that ensures an IP40 protection rating. Thanks to its modular structure, its electrical and mechanical assembly is easy and functional. USES Especially suited, thanks to its modularity, for fixed power factor correction of motors and transformers.
