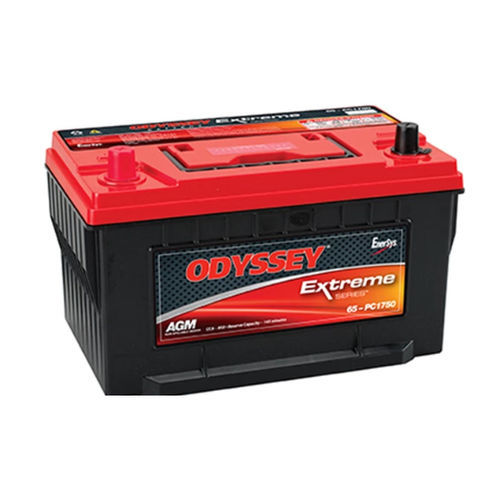

Lead battery ODYSSEY® EXTREME SERIES™
flatthin12 V

lead battery
lead battery
Add to favorites
Compare this product


Characteristics

Type
lead
Configuration
flat, thin
Voltage
12 V
Applications
for electric vehicles
Other characteristics
stationary, high-power, waterproof
Load capacity

Min.: 8 Ah

Max.: 214 Ah

Length / diameter

Min.: 170 mm
(6.7 in)

Max.: 521 mm
(20.5 in)

Width

Min.: 99 mm
(3.9 in)

Max.: 279 mm
(10.98 in)

Height

Min.: 177 mm
(7 in)

Max.: 328 mm
(12.9 in)

Weight

Min.: 6 kg
(13.23 lb)

Max.: 85 kg
(187.39 lb)

Description

SOME BATTERIES OFFER MASSIVE CRANKING POWER. OTHERS, DEEP CYCLE RESERVE POWER. ODYSSEY® EXTREME SERIES™ BATTERIES DO BOTH. BUILT WITH ADVANCED THIN PLATE PURE LEAD (TPPL) TECHNOLOGY, ODYSSEY EXTREME SERIES™ BATTERIES DELIVER ENGINE-CRANKING PULSES UP TO 2700 AMPS FOR 5 SECONDS, AND CAN HANDLE 400 CHARGE-DISCHARGE CYCLES TO 80% DEPTH OF DISCHARGE. Twice the overall power and three times the service life of conventional batteries ODYSSEY Extreme Series™ batteries feature 99% pure lead plates that are extremely thin, so more of them fit in the battery. More plates means more power – twice as much as conventional batteries, plus three times the service life. Like many spiral-wound batteries, ODYSSEY Extreme Series™ batteries employ sealed, dry cell Absorbed Glass Mat (AGM) technology, which allows the battery to be installed even on its side. Massive starting power: engine cranking pulses up to 2700 amps for five seconds Extreme temperature tolerance: -40°F (-40°C) to 140°F (60°C) for non-metal jacket models; -40°F (-40°C) to 176°F (80°C) for metal jacket models Longer life: 8-12-year design life; 3-10-year service life Vibration resistant: protection against high-impact shock and vibration
