Lead battery ODYSSEY®
flatthin12 V

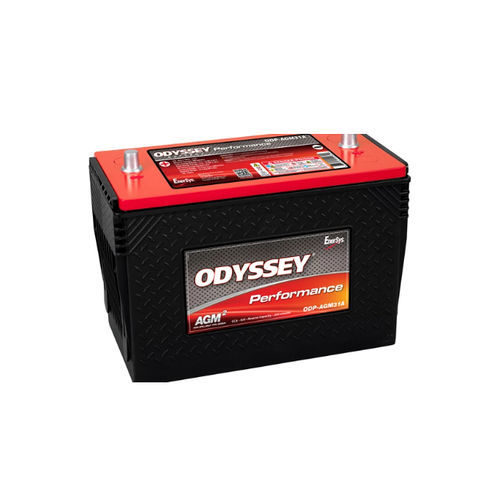

Lead battery - ODYSSEY® - ENERSYS - flat / thin / 12 V
Lead battery - ODYSSEY® - ENERSYS - flat / thin / 12 V
Add to favorites
Compare this product


Characteristics

Type
lead
Configuration
flat, thin
Voltage
12 V
Applications
for electric vehicles, for marine applications
Other characteristics
high-performance, waterproof
Load capacity

Max.: 220 Ah

Min.: 49 Ah

Length / diameter

275 mm, 276 mm, 316 mm, 330 mm, 518 mm
(10.8 in, 10.9 in, 12.4 in, 13 in, 20.4 in)

Width

147 mm, 172 mm, 173 mm, 223 mm, 276 mm
(5.79 in, 6.77 in, 6.81 in, 8.78 in, 10.87 in)

Height

201 mm, 218 mm, 225 mm, 240 mm
(7.9 in, 8.6 in, 8.9 in, 9.4 in)

Weight

Max.: 65 kg
(143.3 lb)

Min.: 23 kg
(50.71 lb)

Description

DESIGNED TO HANDLE THE INCREASED USE OF ONBOARD ACCESSORIES IN TODAY'S VEHICLES, ODYSSEY® PERFORMANCE SERIES™ BATTERIES PROVIDE ALL THE RELIABILITY OF ODYSSEY EXTREME SERIES™ BATTERIES, WITHOUT THE HIGH COLD CRANKING AMPS (CCA) OR RESERVE CAPACITY MANY APPLICATIONS MAY NOT REQUIRE. More overall power and longer service life than conventional batteries Built with advanced Thin Plate Pure Lead (TPPL) technology, ODYSSEY Performance Series™ batteries feature 99% pure lead plates that are extremely thin, so more of them fit in the battery. More plates means more power – twice as much as conventional batteries, plus three times the service life. Thanks to sealed, Absorbed Glass Mat (AGM) design, ODYSSEY Performance Series™ batteries are virtually maintenance-free and never require watering. Massive starting power: engine cranking pulses up to 2700 amps for five seconds Extreme temperature tolerance: -40°F (-40ºC) to 140°F (60°C) for non-metal jacket models; -40°F (-40°C) to 176°F (80°C) for metal jacket models Longer life: 8-12-year design life; 3-10-year service life Vibration resistant: protection against high-impact shock and vibration
