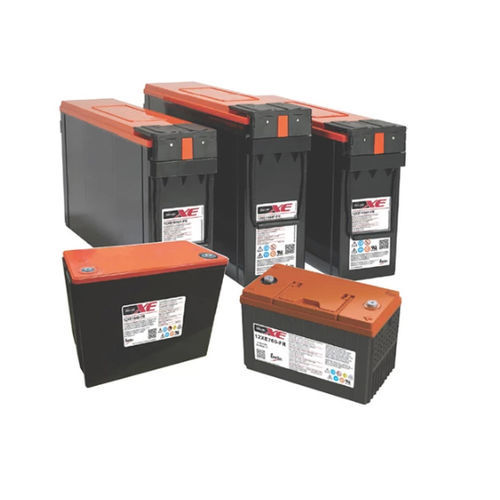

Lead battery DATASAFE® XE
thin12 Vindustrial

lead battery
lead battery
Add to favorites
Compare this product


Characteristics

Type
lead
Configuration
thin
Voltage
12 V
Applications
industrial
Other characteristics
deep cycle
Load capacity

Max.: 1,040 Ah

Min.: 205 Ah

Length / diameter

330 mm, 338 mm, 581 mm
(13 in, 13.3 in, 22.9 in)

Width

125 mm, 173 mm
(4.92 in, 6.81 in)

Height

218 mm, 273 mm, 283 mm, 316 mm
(8.6 in, 10.7 in, 11.1 in, 12.4 in)

Weight

35.1 kg, 44 kg, 48.7 kg, 51.7 kg, 58.6 kg
(77.38 lb, 97 lb, 107.37 lb, 113.98 lb, 129.19 lb)

Description

ENGINEERED TO MEET THE EVOLVING NEEDS OF TODAY'S DATACENTERS, DATASAFE® XE BATTERIES SUPPORT HIGH-RATE DISCHARGE RUNTIMES OPTIMIZED FOR LESS THAN FIVE MINUTES. FEATURING ADVANCED THIN PLATE PURE LEAD (TPPL) TECHNOLOGY, DATASAFE XE BATTERIES ARE AN IDEAL SOLUTION FOR NEW HYPERSCALE DATACENTERS WHERE RELIABILITY, OPERATING COSTS AND SPACE EFFICIENCY ARE ESSENTIAL REQUIREMENTS. More power at a lower Total Cost of Ownership (TCO) Thanks to advanced Thin Plate Pure Lead (TPPL) technology and superior manufacturing processes, DataSafe XE batteries deliver unmatched power density in industry-standard footprints. Compared to conventional monobloc Valve Regulated Lead Acid (VRLA) batteries, DataSafe XE batteries offer long life, faster recharge times, lower energy consumption, and a wider operating temperature range. The result is greater reliability with Total Cost of Ownership (TCO) savings of up to 25 percent. Capacity range: 763 to 1150 Watts Per Cell (WPC) / five minute rate to 1.67 Vpc 12-year design life and up to 17 months shelf life at 77°F (25°C) Fast recharge times to support multiple outages Available in front and top terminal configuration
