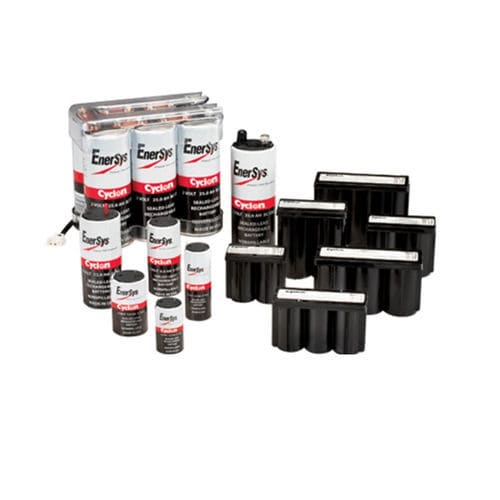

Lead battery CYCLON®
cylindrical12 Vfor medical applications

lead battery
lead battery
Add to favorites
Compare this product


Characteristics

Type
lead
Configuration
cylindrical
Voltage
12 V
Applications
for medical applications, emergency power supply
Other characteristics
high-performance, high-reliability
Load capacity

Max.: 25 Ah

Min.: 2.5 Ah

Length / diameter

Max.: 139.2 mm
(5.5 in)

Min.: 34.3 mm
(1.4 in)

Width

Max.: 135.6 mm
(5.34 in)

Min.: 68.1 mm
(2.68 in)

Height

Max.: 123.2 mm
(4.9 in)

Min.: 46 mm
(1.8 in)

Description

CONSTRUCTED OF HIGH-PURITY MATERIALS, CYCLON® BATTERIES ARE ENGINEERED TO PROVIDE LONGER SERVICE LIFE, HIGH RELIABILITY AND WITH FEWER REPLACEMENTS. SAFE ENOUGH FOR INSTALLATIONS IN OFFICES OR HOSPITALS. FROM GENERAL PURPOSE TO EXTREMELY DEMANDING APPLICATIONS, CYCLON BATTERIES OFFER BETTER PERFORMANCE AND LOWER LONG-TERM COST OF OWNERSHIP. Exceptional power made to last A rugged metal outer jacket offers strong protection from shock, vibration and extreme temperature. Extremely thin, 99.99% pure lead plates offer more surface area and deliver far more power than conventional batteries. High purity acid is absorbed into Absorbed Glass Mat (AGM) plate separators for leakproof operation in any position. CYCLON batteries can be recharged in under an hour and perform remarkably well in extreme applications and temperatures – up to twice the capacity at -4°F (-20°C). A 50 PSI safety valve allows gases to escape and automatically reseals to prevent excessive gas accumulation or "dry out" failure from repeated recharges. Resealable safety valve Steel can enclosure Rugged construction High stable voltage delivery Fast recharge
