Temperature measuring instrument VBox series

digitalstrain gaugehand-held

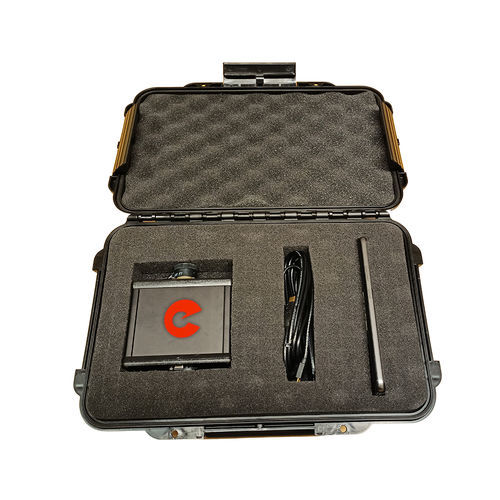

The VBox series are portable measuring amplifiers for load cells. The system consists of a small amplifier box and a corresponding app for Android devices. The VBox series are portable measuring amplifiers for load cells. The system consists of a small amplifier box and a corresponding app for Android devices. The amplifier can process sensor strain gauge signals from -500 to 500 mV/V. It is a high-precision amplifier with a 24-bit A/D converter and a fast microcontroller. The Android app is a very easy-to-use software for reading enertec load cells as well as other force or torque sensors. The system is powered via the Android device, so no batteries or rechargeable batteries are required. Features Robust measuring device suitable for construction sites in conjunction with Android device Power supply via connected Android device Measurement of sensors from Enertec Engineering or other brands Adapter cable available for measuring all standard sensors Models available for various analogue signals Temperature measurement in load cells of the ELC and LCM series Automatic sensor recognition for load cells in the ELC and LCM series Enertec-Connect APP The Enertec Connect APP is available free of charge in the Google Playstore and is required for measurement with the VBox. The Android device must support the OTG function and have a USB-C port. An Android device with pre-installed APP can be supplied on request.
