RS-232 interface card SDI-12

RS-485Modbus RTU

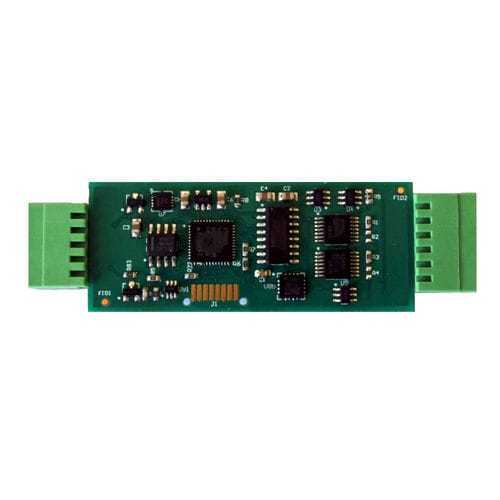

Enertec Engineering AG is a leading and highly innovative manufacturer of load cells with a wide range of force transducers. The EP-1-STRAIN-24_SD85 measuring bridge amplifier is an intelligent universal strain gauge interface card for the direct connection of strain gauges and load cells. The device can be connected to any suitable device that supports the SDI-12 network. The card has an SDI-12 and an RS485 connection, which can be selected by the user via industry standard configuration commands. The EP-1-STRAIN is user programmable and can provide results in both raw and engineering unit format. A precision temperature sensor input is available for applications that require temperature compensation. The sensor monitors the bridge excitation during the measurement and automatically compensates for any excitation fluctuations during the data conversion process. Features Support for measuring bridges with 300 to 4K ohms Precision temperature sensor SDI-12 & RS485 digital communication selectable User-defined, programmable higher-order scaling factors Extended SDI-12 address support: 0-9 , a-z 24 bit ADC Low power consumption - Minimised self-heating effect Technical data and raw data values Free application software - Q-LOG
