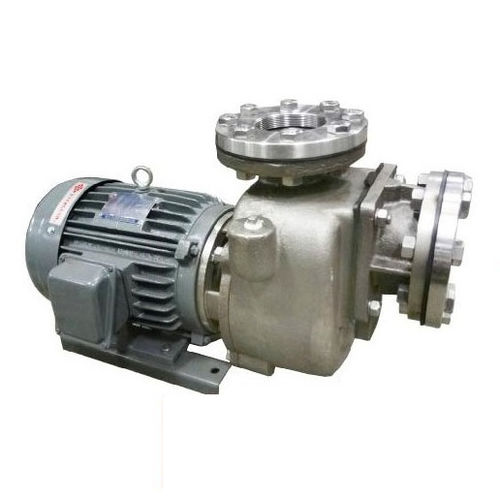

Close-coupled pump FKSimpellerfor wastewaterslurry
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for wastewater, slurry
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- for water treatment, agriculture
- Applications
- transfer, irrigation, sewage, drainage
- Material
- stainless steel
- Protection level
- IP54
- Other characteristics
- mechanical, high-efficiency, small, with mechanical seals, close-coupled, corrosion-resistant
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 1,450 l/min
(383.04948 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.038 psi)- Head
Min.: 0 m
(0'00" )Max.: 31 m
(101'08" )- Power
Min.: 1 ch
(1 hp)Max.: 15 ch
(15 hp)
Description
1. Close-coupled design, small size, space-saver,high efficiency, easy maintenance. 2. Adopt high quality Mechanical seal, to ensure no leakage and extend life time. 3. Semi-open impeller design, suitable for sewage ,waste water, sludge drainage. 4. Great suction ability(Max.5M). Free install bottom valve. After initial priming water inside pump , the pump will auto-exhaust the air. 5. FKS Pump body/impeller/shaft are stainless steel material for better corrosion-resistant . Applications: Agriculture irrigation, transfer underground water,waste water treatment, water supply for factory,wastewater drainage in construction site. Operating Conditions: 1.Ambient Temp.: 0~40℃ 2.Liquid Temp.: 0~60℃ 3.Working Pressure: Max. 10 bar 4.Suction Lift: Max. 5M 5.Solid Passage: Max.5MM Specification: 1.Power: 1HP~15HP 2.Motor IP Protection: IP54 3.Motor Insulation: E,B,F Class 4.Pole: 2P 5.Voltage: 1 phase-110/220V*60HZ; 1 phase-220~240V*50HZ(Below 2HP) 3 phase 220~660V 6.Inlet/Outlet: 5”~ 4” 7.Max.Head: 31M 8.Max.Flow Rate: 1450LPM
