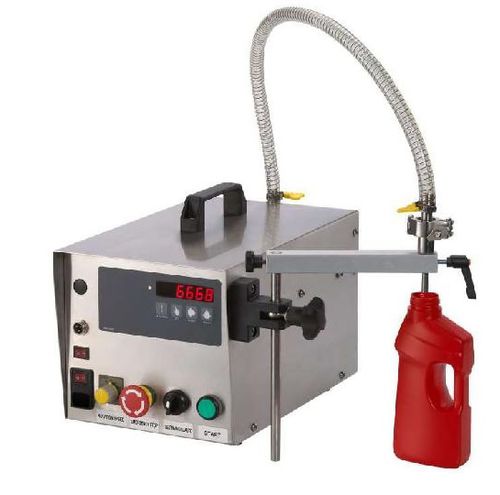

Tabletop filling machine

manualbottlecontainer

Tabletop Gear Pump Liquid Filling Machine is the best choice for have large volume or high speed filling . It is able to achieve the output with 250ml per second by sophisticated module of gear pump and make the liquid filling to be best performance. Machine will satisfy your need for a relatively low volume, low cost, user friendly, high quality filling machine. The compact machine design has no need for too much room, and with its simple installation and easy operating mode, the required time for production is shortened. The filling tube can be made of food/ pharmaceutical grade materials, which could put into the hopper you already have and no need to buy another one. The tabletop Gear Pump filling machine parts and your liquid wont have any contact, so the buyers do not need to worry about the contamination. also, this machine could be applied to more than one kind of liquid. All you need to do to handle these liquid is using the proper filling tube, which is easy to clean and replace and high-standard sanitary one. It’s best tabletop filling solution for small volume and small batch production. SPECIFICATIONS: Power: single phase 110/220VAC, 50/60Hz Filling Range: 50~4000ml Filling Speed: 50~250ml/sec Accuracy: 0.5%~1% Machine Dimensions: (L)480mm (W)310mm (H)270mm (For reference only, the real drawing should be considered as final.) FEATURES: 1. Easy to set, even if the novice can also with ease operate 2.Three operating modes: manual , intermittent filling or foot switch 3.Apply liquid like water, lotion, shampoo, hot sauce(under 40℃) or any other free flowing liquid
