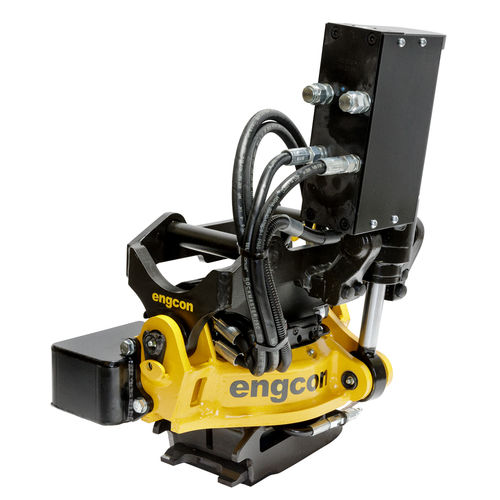

Excavator tilting tool attachement system EC02B

One of the market’s smallest tiltrotators, this is designed for machines weighing up to 2.5 metric tons. With a base weight of 65kg, the EC02B has minimal impact on stability while delivering access and flexibility that only a tiltrotator can provide. Features: -Rotation ∞ ± 40° tilt -Complies with European safety standards -A load-holding valve as standard equipment provides maximum safety Quick coupler: We offer most types of couplers available on the market. Control system: Choose between several different controls systems based on your machine’s features. The EC02B can easily be fitted with engcon’s DC2 proportional control system for outstanding variable high-precision control and remote support via exclusive smartphone app. Electrical system: Standard 12V. Technical specifications -Width A [mm]: 180 -Width B [mm]: 155 -Width C [mm]: 160 -Total length D [mm]: 435 -Build height E [mm]: 245 -Tilt [: 2x40 -Weight [kg]: 77 -Max bucket width recommended by engcon [mm]: 900 -Rec hydraulic flow DC2/SS10 [l/min]: 25 -Rec hydraulic flow SS9 tilt/rotation [l/min]: 7/20 -Max hydraulic pressure [MPa]: 22 -Max breakout torque [kNm]: 20 -Standard mounting: S30 -Base machine weight [t]: 1.5–2.5
