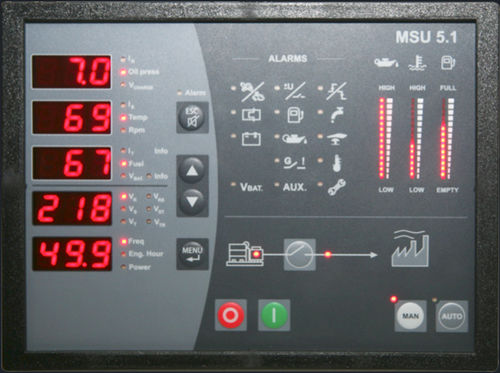

Automatic genset controller MSU 5.1

manual

MSU 5.1 provides embedded intelligence for Gen-Set control applications where high integration flexibility and "on-site" system monitoring is required. MSU 5.1 is designed with enhanced applications in mind and equipped with all the necessary hardware and software to fulfill this demand. The unit is equipped with an ARM Processor for high performance. All the Mains and Generator parameters are measured, processed and executed simultaneously, which in return allows enhanced functions for single and multiple Gen-Set applications. System hardware allows the user to interface with high demanding applications, where high number of peripheral control is required. The system software also carefully designed in order to allow dedicated functions to be characterized for a particular application. Simple logic functions can also be executed on the auxiliary inputs and outputs, hence reducing the number of peripheral instruments. The controller is equipped with multiple communication ports for enhanced interface with external control systems. RS232/485 can be used for on-site system configuration as well as remote control and monitoring of the system while integrated CAN Bus can communicate with engine ECU module. The system can also be interfaced with ENKO external i/o expansion modules for applications where specific dedicated hardware control is needed. Front panel design includes 3 analog displays for Engine temperature, Oil pressure and Fuel level indication. Functions can be made to operate on these measured analog values. In the standby mode, the unit can also measure and control the engine body temperature.
