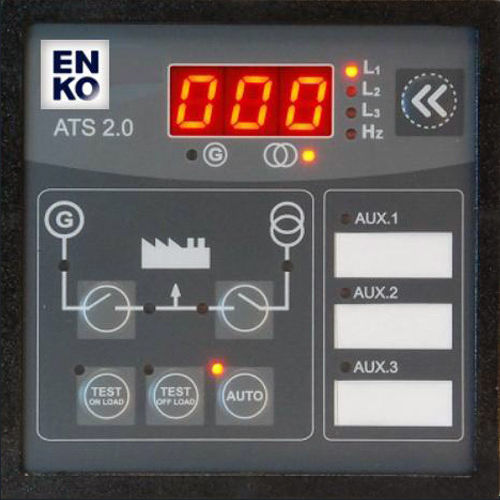

Automatic transfer switch ATS 2.0

panel-mountfor generator setsthree-phase

ATS 2.0 is a very versatile Load transfer switch, intended to be used in most demanding applications. Can control pulse type breakers directly from its output ports. Built-in features make ATS 2.0 a perfect device for bus-bar control and Load management, integrated with enhanced user selectable functions. ATS2.0 is a full Automatic Load Transfer Control Switch, which monitors 3ph Mains Bus-Bar voltages and transfer the load, if any or all phase voltages go out of their respective set limits. The controller also monitors Mains frequency for the same action. These units can be used with any two voltage bus-bars, where the load is required to be controlled according to their availability. The control module also monitors all three phases of the Generator bus-bar and take action accordingly. ATS2.0 is designed with highly functional capabilities where the user can interface with most demanding applications. The module can control MCB and GCB contactors as well as compact circuit breakers direct from its ports, where two independent signals are required for switching the breaker on and off. The module allows the user to start the generator for testing or periodical maintenance. While the generator is running, the load can be transferred between mains and generator bus-bars, using the switches on the front panel. If, during this phase, the mains voltage fails, the unit automatically switches to “Auto” mode and connects the load to Generator output. During operation, mains or generator phase voltages or frequency can both be displayed on the front panel, hence avoiding extra AC voltmeters to be used on the panel.
