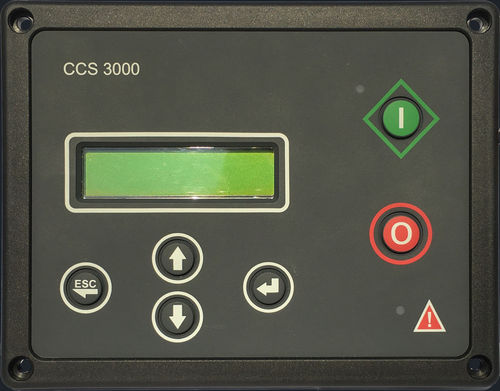

Compressor control unit CCS 3000

The Intelligent and Economical Solution for Screw and Piston Type Air Compressors... The CCS 3000 series Air Compressor Controller is a microcontroller based unit featuring a character LCD display and is designed specially for use with motorized contactor driven screw and piston type air compressors. All necessary control and measurement functions that may be needed in small and mid-sized screw or piston type air compressors are provided in an economical, user-friendy and efficient unit. The back-lit 2 x 16 LCD display located on the unit ensures easy installation and usage. KEY FEATURES   • Automatic and Manual operation modes • Running hours stamped last 15 alarms log   • 2 x 16 character back-lit LCD screen   • Turkish, English, Russian and French language options   • 3 level password protection   • Parameter configuration from front panel   • All timers and limits can be edited   • Selectable one or two pressure inputs   • Option to use either a pressure transmitter or a pressure switch   • 6 timers for servicing and parts maintenance   • Automatic start following an electricity cut    • Remote start and remote load valve control using digital signal   • Remote start and remote load valve control via communication in communication enabled models (must be stated up on ordering)    • Adjustable start-up screen company information   • Ability to update software using the internal bootloader
