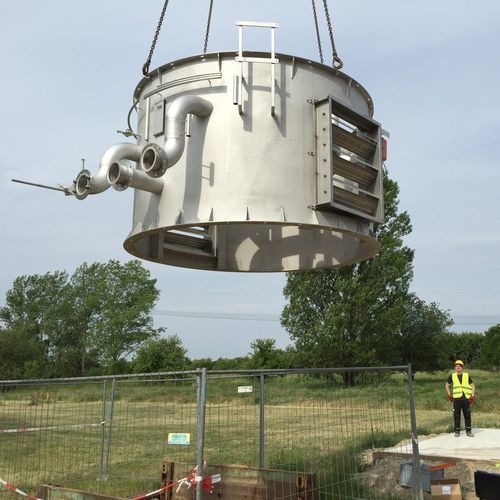

Flare stack NOXtreme

The high temperature are is the further developed NOXmatic are for the safe and low-emission combustion of land ll, bio or other special gases within a temperature range from 1000 – 1200 °C. In this temperature range the oxidising gas com- ponents are fully processed, thus greatly reducing the formation of nitrogen oxides. With a special burner technology and combustion chamber according to mass, the necessary “hot” zone is generated inside the combustion chamber, guaranteeing a high temperature combustion. In addition, the NOXtreme and all components used from the NOXmatic are manufactured entirely from stainless steel. The air feed for combustion as well as the temperature control can be achieved fully automatically upon request. NOXtreme gas ares are configured according to the individual requirements of the customer. Highlights High temperature combustion in the required temperature range for the complete processing of all oxidising components in the gas reducing the formation of nitrogen oxides (NOx) Combustion chamber outer lining from ceramic Fully customisable burner configuration Combustion chamber technology from specialists Fully automatic control, flame monitoring and ignition Made in Austria Options Manual or automatic regulation of the combustion temperature Equipment for CDM applications Winter packet (frost protection for armatures) Multi-level burner = wider operating range Pressure control Own gas blower incl. accessories Spare parts set
