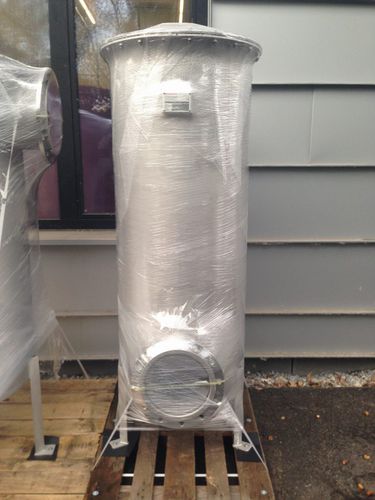

Gas filter CFP

cartridgepressurefine

Before the coarse filtered bio or sewage gas can be fed to the gas consumer it is normally passed through a ceramic fine fillter. Here the gas is passed through a ceramic or reclay unit with a pre-determined pore diameter. Fine particles < 150 – 210 μm and condensate vapour are effectively removed. This eliminates any possible damage to components further on in the gas processing line. A variety of filter materials and filter sizes can be provided to meet the exact requirements of the application. Highlights Simple, maintenance free design Low pressure loss Differential pressure indication with u-pipe gauge Easy access through screwed cover Removal of condensate water via siphon Manufactured entirely from 1.4571 stainless steel Made in Austria Options Various filter materials according to the application Inlet and outlet connections for pressure gauges Use of an automatic condensate removal system
