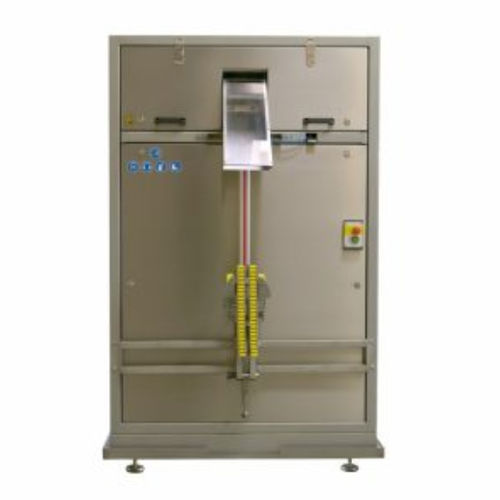

Dry ice press TRIPLE-ICE 100

hydraulicwith movable pistonnumerical control

The all-rounder with a dual shaft design. For slices, blocks, pellets and nuggets. Ideally suited to large production runs and the highest levels of flexibility. Dry ice consists of solid carbon dioxide and is produced by the releasing of CO2 from the liquid phase to atmospheric pressure. Carbon dioxide is a colourless, odourless and tasteless, non-flammable and bacteriostatic gas. In addition to its volcanic origins, CO2 also occurs in the combustion of fossil fuels, during fermentation processes, especially of alcohol and beer, and as a waste gas during the chemical processing of petroleum. During its release CO2 snow is produced which is pressed by a hydraulic press into dry ice blocks or pellets (granules) with a density of approx. 1.5 kg / dm³. Our precise knowledge of the medium of dry ice and its application form the basis for our in-house hydraulic dry ice presses. Capacity - Discs/Blocks = 215 – 600 kg/h ; Pellets = 740 kg/h Number of ice ejections - 2 Electrical connection - 2×11 kW / 400 V / 50 Hz / 63 A Product dimensions - Discs/Blocks 150 × 150 × 18 – 70 mm (T × B × H); Pellets 3mm/16mm Block weight / discs - 608 bis 2363 g Dry ice density - 1,5 kg/dm3
