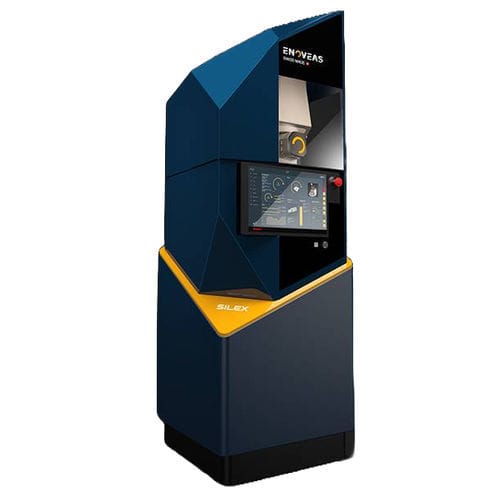

3-axis CNC machining center SILEX series5-axis4-axisvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis
- Spindle orientation
- vertical
- Structure
- floor type
- Applications
- for the aerospace industry, for small parts production, dental, for watchmaking
- Other characteristics
- high-speed, high-performance, high-precision, modular
- X travel
76 mm
(2.99 in)- Y travel
56 mm
(2.2 in)- Z travel
58 mm
(2.28 in)- Rotational speed
60,000 rpm
(376,991 rad.min-1)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Repeatability
1 µm, 3 µm
- Weight
600 kg
(1,322.77 lb)- Overall length
660 mm, 1,040 mm, 1,700 mm
(26 in, 40.9 in, 66.9 in)- Overall width
660 mm
(26 in)- Overall height
2,040 mm
(80.3 in)
Description
For greener production, faster, more efficient and smarter.
A connected and scalable CNC to meet the demands of a transforming industry
GROUND SURFACE : 0.43 m2
MACHINE EVOLUTIVE 4.0 :
LOW ENERGY CONSUMPTION : < 1kW
ENVIRONMENTALLY FRIENDLY
• Acceleration of axes: 25 m/s2
• B-axis travel, torque (peak), speed, acceleration: +/-100°, 3.6/12.9 Nm, 400 rpm, 650 rad/s2
• C-axis travel, torque (peak), speed, acceleration: 360°, 1.4/3.9 Nm, 400 (3500) rpm, 800 rad/ s2
• Spindle speed:
• Accuracy / Repeatability:
• Tool spindle interface:
• HSK16 / ATC15
