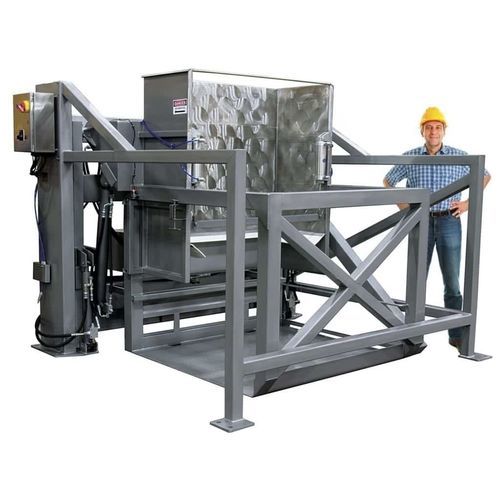

Hydraulic tipping station

fixedstainless steelfor the food industry

3000 Pound capacity For use with dump heights greater than 84” Our Hi-Lift Dumpers are designed for taller dump heights. With an excellent pivot design similar to the Tilt Dumper, the Hi-Lift dumper version features two additional hydraulic cylinders to elevate the container before it enters the dump cycle. This reduction in the swing radius will help save you precious floor space. STANDARD FEATURES • USDA Accepted • Stainless Steel T-304 construction • Integrated hydraulic power pack • ¼” thick channel vertical uprights • 7 & 11 gauge square tube framework • 10 gauge liner • 2 ½” diameter continuous pivot shaft • Maintenance free UHMW pivot bearings • ¼” and 3/8” thick reinforcement at pivot points • 40 degree dump angle • Fixed hold down bar • (2) 3 ½” bore hydraulic pivot cylinders • (2) 2 ½” bore hydraulic lift cylinders • Floor level loading • 3/8” thick bottom runners • 3/8” thick mounting pads • Complete controls with Allen Bradley components • All continuous welds • Glass bead blast finish STANDARD POWER PACK FEATURES • 7.5HP Motor • Fixed volume gear pump • Mounted on an integrated 24 gallon stainless steel reservoir • Motor & Pump enclosed with a Stainless Steel Cover • Powered up and powered down operation • Components include pressure gauge, filter and sight glass • Counterbalance valves for safety of operation AVAILABLE OPTIONS • Tapered discharge liner • Manual adjustable hold down bar • Automatic adjustable hold down bar • Vat seals to reduce product loss • Pickle tank for collection of brine • Dirt Barrier to prevent contamination • 3/8” thick solid bottom • Break-Away Bottom for use with pallets • Extension stands • Folding V-Mag arms
