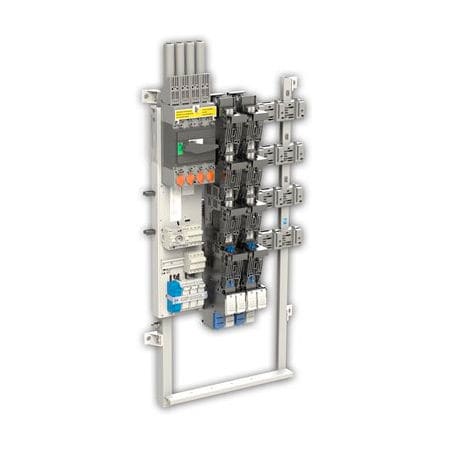

Equipped distribution panel NX1016878

Distribution Panelboard TIPI 4-500 panelboard LV IP2X TIPI 4-500 panelboards protects and dispatch LV distribution network in MV / LV substations, just behind the 250 kVA transformer LV IP2X TIPI 4-500 panelboards include a LV tetrapolar Load Break Switch with certain break, an upstream link short-circuiter, an IP2X bus-bar equipped with standby supply sockets, up to 4 feeders + 1 temporary feeder and a protection of station internal circuit, and public lighting supply main power cutout (ACG). Ensto Novexia SAS - The protection index IP2X provides safe operation and eliminates the need for accessories for the free feeders positions. When the Switch is open, an electrical connection is done between the neutral of the transformer and the ground Full blade fuses size T2 HN type 125 A to 400 A Contact us to define your needs (number of feeders, option, packaging for shipment, etc.) Rated Voltage (Ur): - 0.44 kV Rated current: - 500 A Rated power-frequency withstand voltage (50 Hz - 1min): - 10 kV Lightning impulse withstand level of voltage (1.2/50): - 20 kV Rated mainly active load-breaking current: - 500 A Rated short-time withstand current (0,5s): - 10 kA/s Rated short-time withstand current (peak): - 17 kA/s Standards: - ST 63-S-61 (2017) Maximum number of feeders: - 4 Degree of protection: - IP2X
