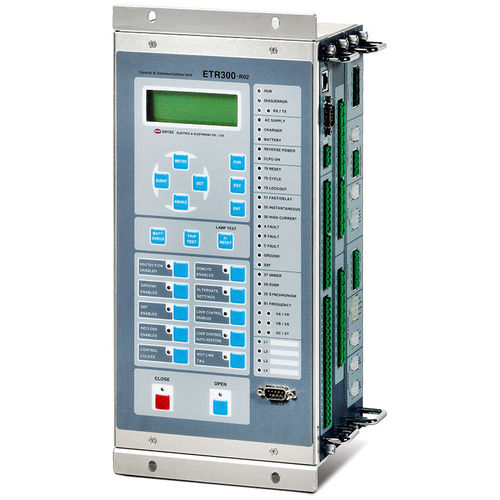

Digital control panel ETR300-R

microprocessor

-Microprocessor-based digital control for Recloser -RTU(Remote Terminal Unit) embedded for local/remote monitoring and control -Display for presentation of trip/alarm conditions and system parameter measurement -DNP 3.0, MODBUS, IEC60870-5-101/104 and IEC61850 communication protocols with SCADA capability -Interface software for setting modification, event data acquisition, operation history management via portable PC -Various T-C Curves of IEEE C37.112, IEC255-3, McGraw Edison, User-defined, etc. supported -User Programmable Logic(PLC) support -Protection functions: 51P, 51G, 50P, 50G, 46, 81, 27, 59, 67, 79 and CLPU etc. -More compact size compared to EVRC2A-NT
