Cartridge filter housing Panelgard™ EXfor chemicalsPVDF
Add to favorites
Compare this product
Characteristics
- Filter type
- cartridge
- Fluid
- for chemicals
- Material
- PVDF
- Operating pressure
690,000 Pa
(100.076 psi)
Description

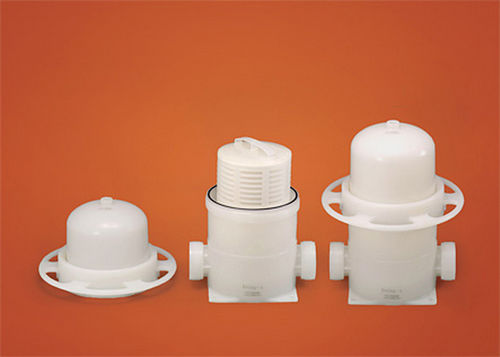

Panelgard™ EX Housing
High-flow rate design for flat panel display applications
Convenient handle to improve cleanliness and safety
Made with high-quality PVDF
PVDF locking ring to properly seat the filter cartridge
Materials:
Housing head: PVDF
Housing bowl: PVDF
O-ring for housing body: Fluoroelastomer (AS568A-375)
Locking ring: PVDF
Connections:
Inlet/outlet: 65A, 50A, or 40A (Reducing sleeve on 50A and 40A）
Vent/drain:
1/2” Rc
Maximum operating conditions:
Maximum operating pressure: 0.69 MPa at 25°C (0.6 MPa at 50°C) (static) PSI equivalents
Maximum operating temperature: 50°C
