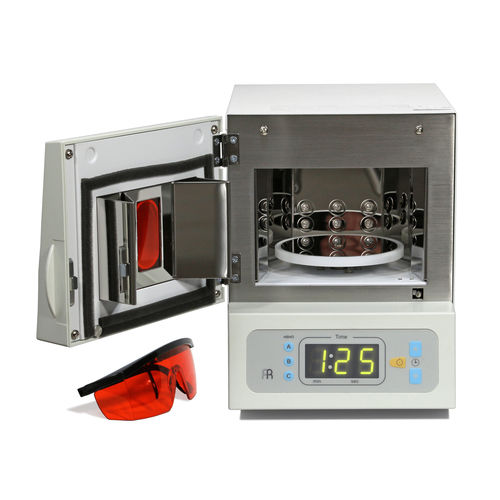

UV LED curing system PCA 100

bench-top

The EnvisionTEC PCA 100 is a post-curing apparatus for the final hardening and strengthening of photopolymer parts that were 3D printed. This unit features 36 LEDs that deliver light in the 390 – 420 nm wavelength range. The PCA 100 is ideal for applications in jewelry, dental, and the hearing aid industries. Using a post curing apparatus as a final step results in higher strength and stability and also ensures a thorough cure, which is critical for parts destined for direct casting. The PCA 100 also features an automatic rotating turntable, allowing for optimal uniformity in curing. A digital display control panel provides simple and user-friendly operation and a buzzer alerts the user of the completion of the curing process. MACHINE PROPERTIES Power Supply Voltage: 100 – 240 VAC 50/60 Hz Wattage: MAX 200W Outer Dimensions: 9.7 x 7.8 x 10.6 in. (245.5 x 197 x 268 mm) Weight: 14.3 lb. (6.5 kg) No. of LED's: 36 Wave Length: 390 – 420 nm Standard Color: White Useable Inner Chamber Dimentions: 4.25 x 4.25 x 2.75 in. (108 x 108 x 70 mm)
