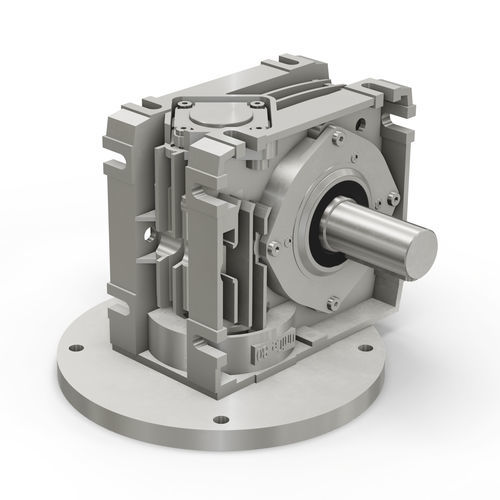

Worm gearbox UniCe

right anglehigh-efficiencyhigh load capacity

The UniCe gearbox can be mounted on any housing surface, as the housing is completely prismatic and each surface has mounting holes or mounting slots. Can be mounted in any position - the top of the four oil screws is replaced by a bleed screw only after mounting has been completed - if necessary. High overload capacity against breakage due to special toothing (up to 100%, even higher for most types). Size 35, 40, 50 and 63 housings are absolutely one-piece and therefore absolutely leak-proof. Even with overloads, thermal expansion and impacts. The other sizes are designed so that all sealing surfaces are cylindrical and do not transmit torque. Hollow shaft for all gearbox sizes saves couplings, brackets, bearings, complicated assembly work and space. High load on the output shaft, as the bearing is of limited size. The one-piece housing is heavily ribbed and therefore very robust. Built-in slip clutch: All upstream as well as downstream machine parts are designed with an exact safety factor; once a torque has been set, it cannot be exceeded. Long service life of the slipping clutch (runs in an oil bath). Further advantages, such as protection against start-up shocks, operating errors and overloading. High thermal conductivity and same thermal expansion as worm gear set. Therefore, the meshing ratios of worm and worm wheel are exactly the same when the gearbox is cold as when it is operating.
