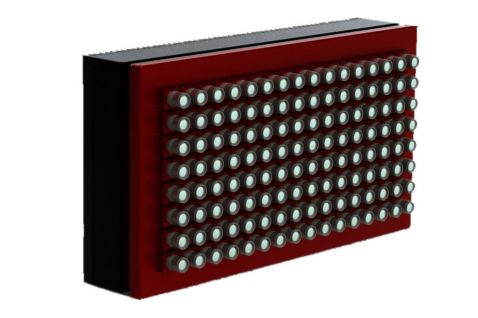

EOPTIS' super-resolution camera allows the capture of images of moving subjects at an unprecedented level of detail. Compared to other approaches based on overlapping adjacent portions of the scene shot in subsequent instants by moving the camera itself, EOPTIS' camera is capable of instantly acquiring the full-resolution image. This feature and the high bandwidth for data transfer allow a frame rate comparable with standard cameras. The super-resolution camera is built from an array of mid-resolution cameras. This architecture can be easily adapted to make the array operate as a single camera that multiplies the performance of the base elements or behaves like a set of independent but synchronised cameras looking at the same scene from different points of view (click here for a technology insight). FEATURES Customizable parameters Resolution from 100 to 1000 Mpixel and beyond Number of base cameras or imaging sensors (from 16 to more than 200) Spacing and spatial arrangement of the cameras or sensors Frame rate (1 to 50 frame/s) Optics focal length (Field of view) Orientation of optical axis
