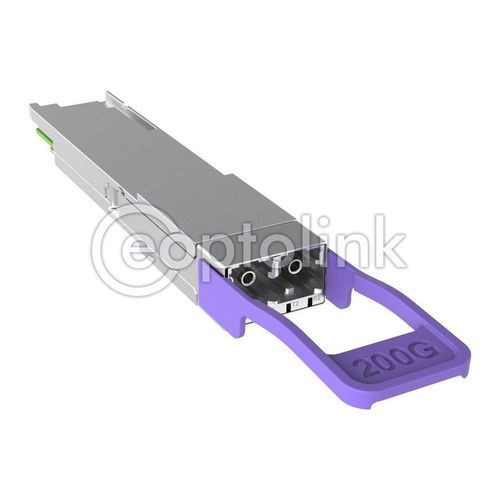

Fiber optic transceiver module QSFP28-DD

Ethernet8-channeldata

Eoptolink's QSFP28-DD is addressing three technical challenges for Ethernet switch and router vendors. The transceiver can be used to offer 200G point-to-point interconnections. They also can be used for high port building practices in 100G switches/routers, thus doubling the port density by using the two CS connector interfaces independently. Additionally, the transceivers can be used in 400G switches/routers to offer more efficient backward compatibility to legacy 100G interfaces like SR4, CWDM4, 4WDM-10 or LR4. Eoptolink’s QSFP-DD 2x100G are having 8x25G optical lanes operating at NRZ encoding. They are compliant with the QSFP-DD MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP-DD MSA. Expands on the QSFP28 pluggable form factor, a widely adopted four-lane electrical interface 2×1 stacked integrated cage / connector Cage design optimizations and module case optimizations enable thermal support of at least 7w per module QSFP-DD electrical interfaces will employ eight lanes that operate up to 25 Gbps NRZ modulation, providing solutions up to 200 Gbps QSFP-DD can enable up to 14.4 Tbps aggregate bandwidth in a single switch slot By doubling aggregate switch bandwidth while maintaining port density, QSFP-DD will support continuing growth in network bandwidth demand and datacenter traffic Systems designed with QSFP-DD modules will be backwards compatible, allowing them to support existing QSFP modules and provide flexibility for end users and system designers
