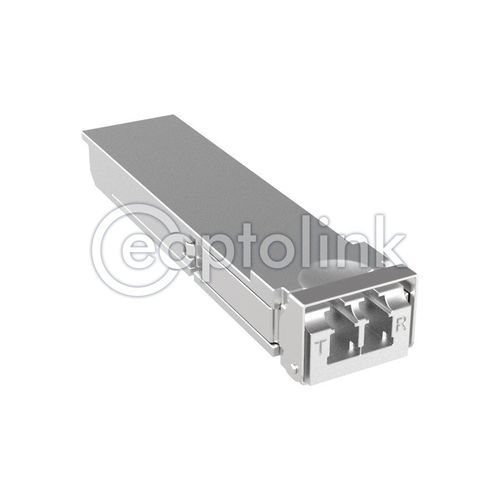

Fiber optic transceiver module 100G CFP4

gigabit Ethernet4-channeldata

Eoptolink CFP4-100GBASE-LR4 and CFP4-100GBASE-ER4 module supports a link length of 10, 20 and 40km on standard single-mode fiber (SMF, G.652). 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. Supports 103Gbps and 112Gbps aggregate bit rates Single 3.3V Power Supply and Power dissipation < 5.5W Up to 10km, 40km transmission on SMF Hot-Pluggable CFP4 Footprint Duplex LC Connector Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant RoHS Compliant Operating Case Temperature Standard: -5°C~+75°C Compliant with CFP4 MSA Specification MDIO interface with integrated Digital Diagnostic Monitoring No external reference clock
