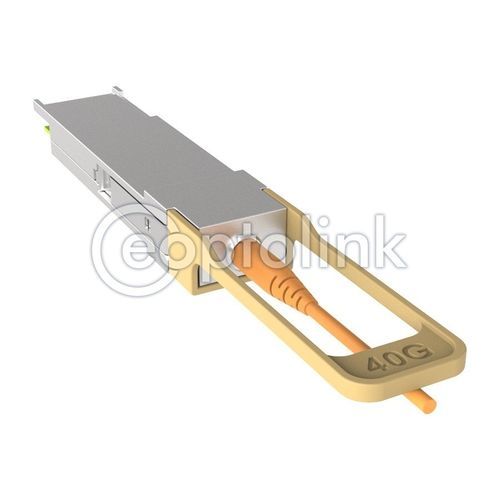

Fiber optic transceiver module 40G QSFP+ AOC

5GEDGEmulti-channel

Eoptolink QSFP Active Optical Cable (AOC) EOLQ-8540G-PCT-XX and EOLQ-8540G-PCT-XX*-1 is a high performance integrated cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10 Gbps with lengths ranging from one to 100 m. These Active Optical Cables utilize multimode fiber using a nominal wavelength of 850nm. The electrical interface uses a 38-contact edge type connector. Eoptolink is producing QSFP+ to QSFP+ AOC and QSFP+ to FOUR SFP+ AOC. Full Duplex 4 Channel 850nm Parallel Active Optical Cable Supports transmission rates up to 14 Gbit/s per channel QSFP-based modules at each cable end QSFP interfaces fully compliant to SFF- 8436 Hot pluggable electrical interfaces QSFP-based module supports Rx Pre-Emphasis EEPROM-based Serial-ID, accessible through two-wire Serial Interface Multi-channel 850nm VCSEL array Multi-channel PIN-detector array Helix type 8-fiber Multi-Mode Optical cable that allows for bending in any direction Low power QSFP module: 0.8 Watts (typ.) per end 0°C to +70°C operating case temperature Laser Class 1 IEC/CDRH compliant
