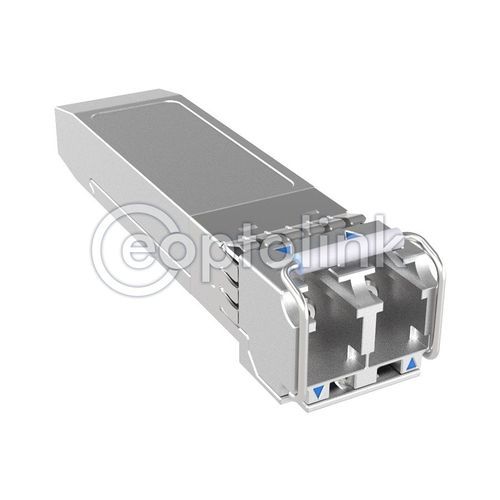

Fiber optic transceiver module 25G DWDM SFP28

Ethernetdatasingle-mode

The EOLP-1625G-13XXRXC series single mode transceiver is SFP28 module for duplex optical data communications support 25.78Gb/s. This module is designed for single mode fiber and operates at a nominal DWDM wavelength from 1528nm to 1566nm as specified by ITU-T. The EOLP-1625G-20XXXRXC series single mode transceiver is SFP28 module for duplex optical data communications support 25.78Gb/s. This module is designed for single mode fiber and operates at a nominal O-Band DWDM wavelength from 1290nm to 1305nm. Operating data rate support 24.33Gbps /25.78Gbps Available in all C-Band or O-band Wavelengths Temperature-Stabilized DWDM EML Transmitter Duplex LC Connector Power Dissipation With CDR function Dispersion tolerance from -200ps/nm to 200ps/nm（10km） and 40km for O-band Hot-Pluggable Compliant with SFF-8402 Standard 0°C~+70°C or Industrial -40°C~+85C case operation temperature rage Safety Certification: TUV/UL/FDA RoHS Compliant
