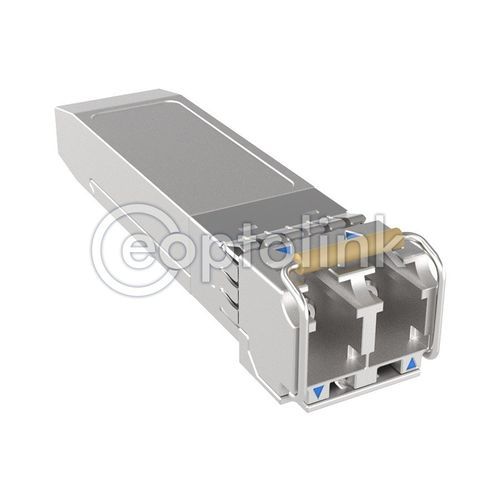

Fiber optic transceiver module 25G SFP28

Ethernetlow-powerdata

Eoptolink's 25G SFP28 transceivers are suitable for 25G Ethernet and CPRI (option 10) applications, like in 5G mobile networks. The family offers modules for the industrial temp range from -40⁰C to +85⁰C and has excellent EMC/EMI performance with the distance up to 80km. Operating Data Rate Support 24.33Gbps and 25.78Gbps with CDR engaged Mode Operating Data Rate Support 9.95Gbps and 10.31Gbps with CDR bypassed Mode Distances up to 10km, 20km, 30km, 40km and 80km Single 3.3V Power Supply Duplex LC Connector Interface, Hot Pluggable Compliant with MSA SFP+ Specification SFF-8402 Built-in Dual CDR Low Power Dissipation Standard 0°C~+70°C or Industrial -40°C~+85C case operation temperature rage Operating temperature range: c-temp or i-temp 25.78Gb CPRI Option 10
