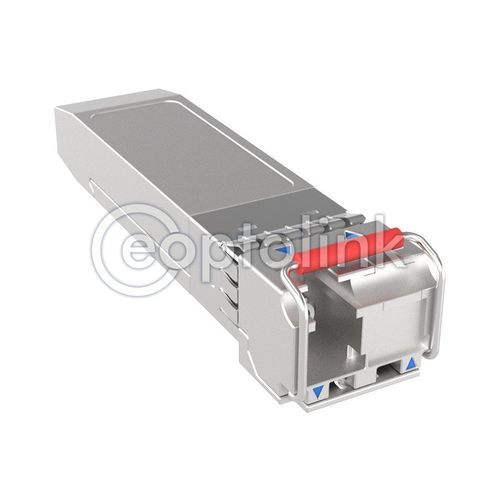

Fiber optic transceiver module 25G BIDI SFP28

Ethernetdatabidirectional

Eoptolink 25G BIDI SFP28 transceivers are designed for bi-directional 25G serial optical data communications by using 1270nm/1330nm or 1270nm/1310nm or 1295nm/1309nm wavelengths. The modules are suitable for 25G Ethernet and CPRI (option 10) applications, like in 5G mobile networks. The family offers modules for the i-temp range from -40°C to +85°C and has excellent EMC/EMI performance. One Fiber Bi-Di SFP28 Optical Transceiver, WDM SFP28 Up to 25 Gbps Bi-directional Data Links Build-in CDR Fully Compliant with SFP+ MSA SFF-8472 Digital Diagnostic Function Simplex LC Connector 1270/1330 for 10km, 20km, 1270/1310 for 30km, 40km, 1295/1309 for 80km Distance Up to 10km, 20km, 40km, 80km Only Required +3.3 V Power Supply RoHS Compliant -40°C to 85°C case operation temperature range
