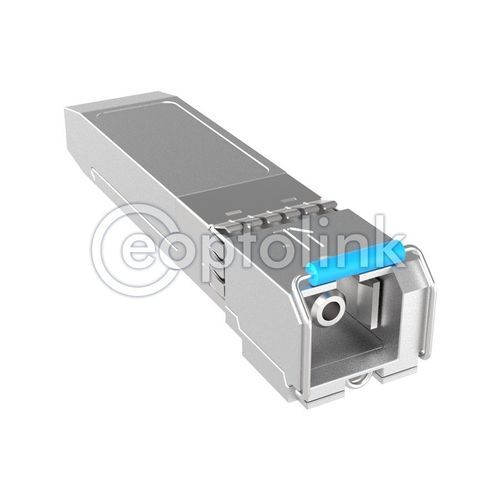

FTTH transceiver module GPON

for fiber opticsgigabit Ethernetmultimode

Gigabit Passive Optical Networks (GPON) is the leading technology being used in FTTx (FTTH) deployments. PON is different than other optical network topologies in that it is a Point to Multi-Point (P2MP) topology. From the Central Office’s (CO) Optical Line Terminal (OLT, with SFP GPON transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to 64(128) different lines. The Transmit and Receive signals operate on different wavelengths allowing bi-directional operation over a single fiber. Anything transmitted from the OLT is transmitted to all 32 lines. It is up to the customer’s system (Optical Network Unit - ONU) to determine what packets are for that customer. All other packets are discarded. The PON current standards have defined downstream data rates up to 2.5Gbps. SFP Package with SC receptacle or Pigtailed, both ONU and OLT series Fast Signal Detect feature reduces ranging overhead Simplified OLT Reset Timing Compliant With ITU-T G.984.2 Up to 20km distance at 9/125µm G.652 SMF Operating Case Temperature Commercial and Industrial
