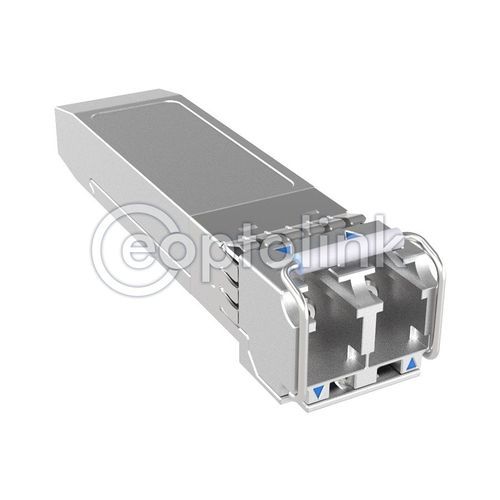

Fiber optic transceiver module 16G DWDM4Gdatasingle-mode
Add to favorites
Compare this product
Characteristics
- Network
- for fiber optics, 4G
- Other characteristics
- data, single-mode
Description
Eoptolink DWDM 16G SFP+ series is for duplex optical data communications support 16Gb/s. This module is designed for single mode fiber and operates at a nominal DWDM wavelength from 1528nm to 1566nm as specified by ITU-T.
Operating data rate up to 14.025Gbps
Available in all C-Band Wavelengths on the 50GHz
DWDM ITU Grid Distance up 40km
Single 3.3V Power supply and TTL Logic Interface
Duplex LC Connector Interface
Hot Pluggable
Power Dissipation < 2.0W
Compliant with SFF-8431 MSA
Compliant with SFF-8432 MSA
Compliant with 8G and 4G Fibre Channel
Operating Case Temperature Standard: 0°C~+70°C
