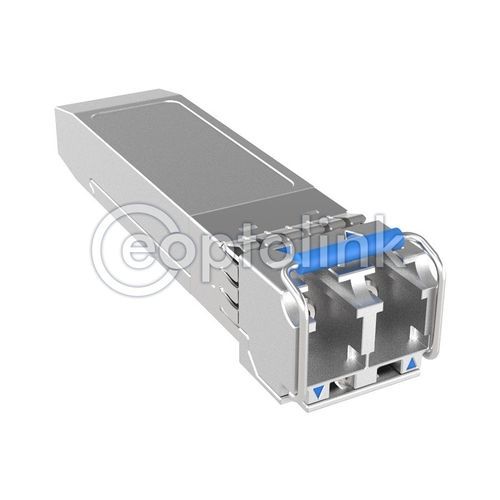

Fiber optic transceiver module EOLS-8548-02

gigabit Ethernet4Gmultimode

The Eoptolink BIDI 4G series is small form factor pluggable module for 4x/2x/1x Fibre Channel and 1000BASE-BX Gigabit Ethernet single fiber communications. It is with the SFP 20-pin connector to allow hot plug capability. The transmitter section uses class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. Fiber Bi-Directional SFP Optical Transceiver Up to 4.25 Gb/s Compliant with Fibre Channel FC-PI 400/200/100 Compliant with IEEE 802.3ah-2004 1000BASE-BX Simplex LC Connector or SC connector AC/AC Coupling according to MSA Single +3.3 V Power Supply RoHS Compliant 0 to 70C, -10 to 85C or -40 to 85C Case Operation Temperature Ranges Class 1 Laser International Safety Standard IEC 60825 Compliant
