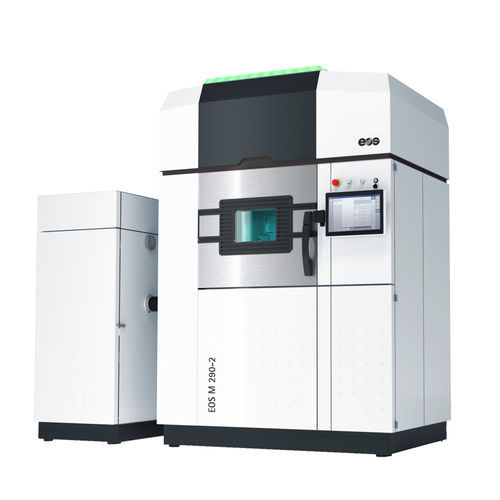

Metal additive manufacturing machine M 290-2

medicalhigh-speed

Dual 400 W lasers offer increased productivity for your 3D printing production, while ensuring high performance of material properties The New Metal Standard for High Productivity Designed for versatility across an extensive array of applications in various industries, including highly regulated industries such as the medical industry. Increase Productivity Our advanced dual 400 W lasers are set up to boost productivity with faster printing and unmatched precision in the build space. Consistent Part Quality Equipped with two 400 W lasers that offer full-field overlap and consistent part quality throughout your production process. Excellent Material Properties The optimized gas flow is meticulously engineered to ensure high performance of material properties. • Laser Type : Yb-fiber laser; 2 x 400 W • Presicion Optics : 2 F-theta-lens(es); 2 High-speed scanner(s) • Scan Speed : up to 7.0 m/s (23.0 ft/s) • Focus Diameter : approx. 85 µm (0.00335 in) • Power Supply : 1 x 32 A • Power Consumption : max. 15.0 kW / typical 5.5 kW • Compressed Air Supply : 7 Bar; 20 m³/h (102 psi; 706 ft³/h) • Machine Dimensions : 2680 x 2120 x 2400 mm (105.5 x 83.5 x 94.5 in) • Recommended Installation Space : min. 4800 x 3600 x 3500 mm (189.0 x 141.7 x 137.8 in) • Weight : approx. 1350 kg (2976 lbs)
