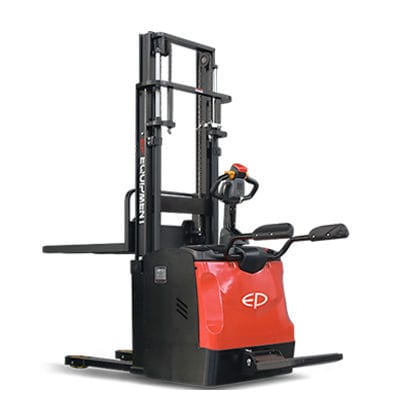

Electric stacker truck ES16-RS series
stand-on24 Vfor warehouse

Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse
Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse
Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse - image - 2
Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse - image - 3
Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse - image - 4
Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse - image - 5
Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse - image - 6
Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse - image - 7
Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse - image - 8
Electric stacker truck - ES16-RS series - EP Equipment - stand-on / 24 V / for warehouse - image - 9
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
stand-on
Voltage
24 V
Applications
for warehouse, handling, pallet, for lifting, narrow-aisle, storage
Other characteristics
compact
Carrying capacity

1,600 kg
(3,527.4 lb)

Lifting height

Max.: 5,500 mm
(216.54 in)

Min.: 2,700 mm
(106.3 in)

Free lift

Max.: 1,910 mm
(75.2 in)

Min.: 100 mm
(3.9 in)

Height of mast when lowered

Max.: 2,352 mm
(92.6 in)

Min.: 1,870 mm
(73.6 in)

Height of mast when raised

Max.: 5,910 mm
(232.68 in)

Min.: 3,165 mm
(124.61 in)

Overall width

850 mm
(33.5 in)

Overall length

2,035 mm
(80.1 in)

Fork width

570 mm, 685 mm
(22.4 in, 27 in)

Fork length

1,150 mm, 1,220 mm
(45.28 in, 48.03 in)

Turning circle radius

1,730 mm, 2,090 mm
(68.1 in, 82.3 in)

Battery capacity

210 Ah

Motor power traction

1.6 kW
(2.175 hp)

Motor power lifting

3 kW
(4.079 hp)

Travel speed

5.5 km/h, 6 km/h
(3.42 mph, 3.73 mph)

Lifting speed

0.1 m/s
(0.328 ft/s)

Weight

1,240 kg, 1,335 kg
(2,733.73 lb, 2,943.17 lb)

Description

The ES16-RS/RSi series are classic electric ride-on stackers known for their high performance and stability, fully compliant with international safety standards. These stackers are engineered to meet the rigorous demands of various industrial environments. • Warehouse Efficiency: Ideal for use in small to medium-sized warehouses, enhancing operations in medium-height rack systems within narrow aisles. • Autonomous Handling: Increasingly adopted in large factory settings where material storage areas or dedicated work zones require autonomous material handling solutions. • Safety Compliance: Meets global safety standards, ensuring secure operations. • Enhanced Performance: Known for robust performance and stability, facilitating efficient stacking operations. • Flexible Applications: Suitable for a range of industrial environments, from compact spaces to expansive manufacturing areas. The ES16-RS/RSi has many great features that will help you improve your daily operations. Find out more. AC technology with ZAPI control system, are well adopted by the industry. Standard power steering allows operators’ continues long working hours. Proportional fast lowering option is available for high efficiency demands. Side positioned drive system and strong caster, easy to manage stability. Performance : • The innovative AC system offers strong power, accurate control,excellent performance. • High strength vertical gearbox, longer working life. • Low-noise but durable hydraulic unit, good quality cylinder as well as hose ensure the high reliability of hydraulic system.
