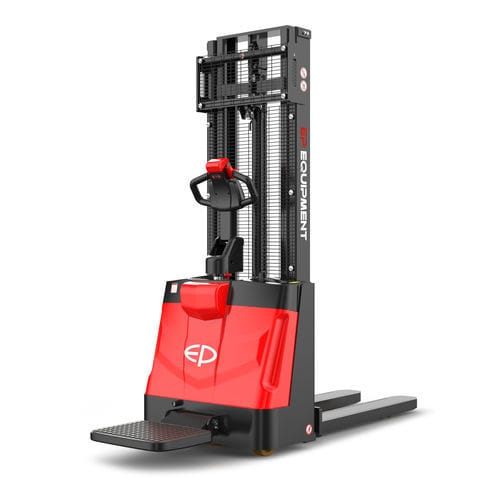

Electric stacker truck ESR151
ride-on24 Vtransport

Electric stacker truck - ESR151 - EP Equipment - ride-on / 24 V / transport
Electric stacker truck - ESR151 - EP Equipment - ride-on / 24 V / transport
Electric stacker truck - ESR151 - EP Equipment - ride-on / 24 V / transport - image - 2
Electric stacker truck - ESR151 - EP Equipment - ride-on / 24 V / transport - image - 3
Electric stacker truck - ESR151 - EP Equipment - ride-on / 24 V / transport - image - 4
Electric stacker truck - ESR151 - EP Equipment - ride-on / 24 V / transport - image - 5
Electric stacker truck - ESR151 - EP Equipment - ride-on / 24 V / transport - image - 6
Electric stacker truck - ESR151 - EP Equipment - ride-on / 24 V / transport - image - 7
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
ride-on
Voltage
24 V
Applications
transport, for warehouse, handling
Other characteristics
compact
Carrying capacity

1,500 kg
(3,306.9 lb)

Lifting height

2,930 mm, 3,016 mm
(115.35 in, 118.74 in)

Height of mast when lowered

2,106 mm
(82.9 in)

Height of mast when raised

3,571 mm
(140.59 in)

Overall width

170 mm
(6.7 in)

Overall length

1,832 mm
(72.1 in)

Fork width

570 mm, 685 mm
(22.4 in, 27 in)

Fork length

1,150 mm
(45.28 in)

Turning circle radius

1,488 mm
(58.6 in)

Battery capacity

105 Ah

Motor power traction

0.75 kW
(1.02 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4 km/h, 4.5 km/h
(2.49 mph, 2.8 mph)

Lifting speed

100 mm/s, 140 mm/s

Weight

670 kg
(1,477.1 lb)

Description

The ESR151 is a 1.5-ton electric ride-on stacker designed for economical handling of light to medium-duty tasks over short distances. It is equipped with an integrated charger and features a foldable ride-on pedal for enhanced operator comfort and convenience. This model is renowned for its tested stability and includes a low-speed mode to ensure safe operation during stacking processes. • Small to Medium Workspaces: Ideal for performing stacking tasks in smaller warehouses or manufacturing facilities, providing an economical solution for material handling. • Safety and Stability: Designed to offer high stability and safety, making it a hassle-free option for daily material handling needs. • Integrated Charging System: Comes with an integrated charger, simplifying the charging process and enhancing operational readiness. • Foldable Ride-On Pedal: Features a foldable pedal, allowing for comfortable ride-on operation, which is particularly beneficial during longer working periods. • Low-Speed Safety Mode: Includes a low-speed mode to ensure safe stacking operations, reducing risks for operators and enhancing overall workplace safety. Owing to its tested stability and safety design, ESR151 is a reliable option which helps reduce risk for operators . INTEGRATED CHARGER ESR151 is equipped with a 24V/15A integrated charger which provides charging convenience and flexibility in daily usage. OPERATION SAFETY ASSURANCE ESR151 is able to automatically switch to the low-speed mode when the height of the forks reaches to 720mm to ensures the operation safety. Also, with iron net covering the mast, the operator is protected from the goods that fall accidentally.
