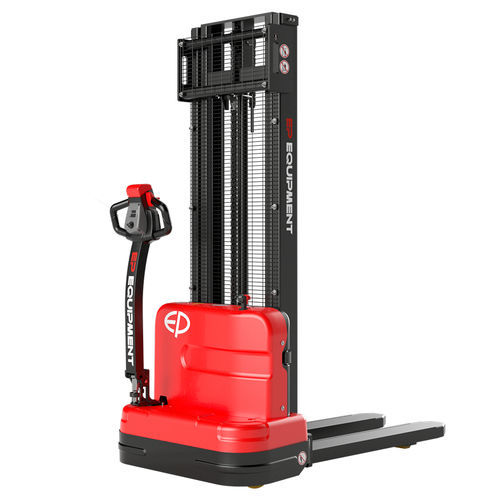

Battery-powered stacker truck EST124
walk-behind24 Vfor warehouse

battery-powered stacker truck
battery-powered stacker truck
battery-powered stacker truck
battery-powered stacker truck
battery-powered stacker truck
battery-powered stacker truck
Add to favorites
Compare this product


Characteristics

Energy
battery-powered
Operator
walk-behind
Voltage
24 V
Applications
transport, for warehouse, handling
Other characteristics
compact, rugged, for heavy loads
Carrying capacity

1,000 kg
(2,204.6 lb)

Lifting height

2,513 mm, 2,713 mm, 3,013 mm, 3,313 mm, 3,613 mm
(98.94 in, 106.81 in, 118.62 in, 130.43 in, 142.24 in)

Height of mast when lowered

1,822 mm, 1,922 mm, 2,072 mm, 2,222 mm, 2,372 mm
(71.7 in, 75.7 in, 81.6 in, 87.5 in, 93.4 in)

Height of mast when raised

3,037 mm, 3,237 mm, 3,537 mm, 3,837 mm, 4,137 mm
(119.57 in, 127.44 in, 139.25 in, 151.06 in, 162.87 in)

Overall width

935 mm
(36.8 in)

Overall length

1,706 mm
(67.2 in)

Fork width

680 mm, 685 mm, 770 mm
(26.8 in, 27 in, 30.3 in)

Fork length

1,000 mm, 1,150 mm, 1,220 mm
(39.37 in, 45.28 in, 48.03 in)

Turning circle radius

1,415 mm
(55.7 in)

Battery capacity

80 Ah

Motor power traction

0.75 kW
(1.02 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

3.7 km/h, 4 km/h
(2.3 mph, 2.49 mph)

Lifting speed

100 mm/s, 150 mm/s

Weight

470 kg
(1,036.17 lb)

Description

EST124 is an 1.2T electric walkie stacker, an ideal replacement to semi-electric stackers. This lift demonstrates metal cover and strong chassis which will protect the truck from fire, crash or rollover. EST124 also features a strong mast allows it to stack goods to a maximum height of 3.6m. EST124 is a reliable and efficient stacker for your light to medium duty applications. • Cost-Effective Replacement: Ideal for replacing semi-electric stackers in small to medium workplaces including supermarkets, mall warehouses, and electronics factories. • Safe for Heavy Loads: The metal cover and strong chassis help to reduce stress and deformation under heavy loads, ensuring long-term reliability and safety in various stacking operations. • High Stacking Capability: This electric pallet stacker can stack up to 3.6m, suitable for a range of industrial stacking tasks. • Robust Protective Features: The metal cover and strong chassis provide superior protection against potential damage, making it safe for rigorous industrial use. • Maintenance-Free Battery: Equipped with a 24V/80A AGM battery that requires no maintenance, coupled with an integrated charger for ease of use. • Suitable for Various Settings: Its compact size and efficient design make it perfect for use in confined spaces like retail backrooms and small warehouses. EST124 features metal cover and strong chassis and it greatly reduces stress and deformation caused by a heavy load. Integrated charger for charging convenience EST124 comes with an 24V/10A integrated charger and a 24V/80Ah AGM battery, providing charging convenience and flexibility for daily usage.
