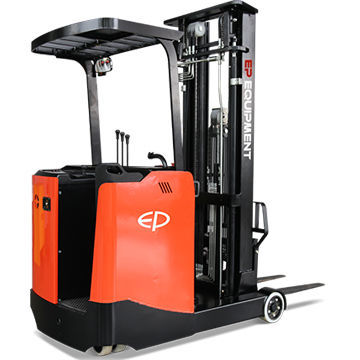

Electric reach truck CQD15S stand-onfor warehousenarrow-aisle
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- stand-on
- Applications
- for warehouse, narrow-aisle
- Other characteristics
- 3-wheel
- Carrying capacity
1,500 kg
(3,306.9 lb)- Lifting height
3,000 mm
(118.11 in)- Overall width
1,078 mm, 1,090 mm
(42.4 in, 42.9 in)- Overall length
2,335 mm
(91.9 in)- Load center distance
600 mm
(23.6 in)- Axle loading with maximum load front
490 kg, 1,510 kg
(1,080.3 lb, 3,329 lb)- Axle loading with maximum load rear
2,416 kg, 3,445 kg
(5,326.4 lb, 7,594.9 lb)- Axle loading without load front
1,621 kg
(3,573.7 lb)- Axle loading without load rear
846 kg
(1,865.1 lb)- Height of mast when lowered
2,050 mm
(80.7 in)- Overall height with mast raised
3,860 mm
(152 in)- Height to top of overhead guard
2,255 mm
(88.8 in)- Seat height
335 mm
(13.2 in)- Length to fork face
1,265 mm
(49.8 in)- Fork carriage width
830 mm
(32.7 in)- Ground clearance under mast with load
70 mm
(2.8 in)- Ground clearance at center of wheelbase with load
70 mm
(2.8 in)- Turning circle radius
1,765 mm
(69.5 in)- Travel speed
8.5 km/h, 9 km/h
(5.3 mph, 5.6 mph)- Lifting speed
280 mm/s, 440 mm/s
(0.289 in/s)- Lowering speed
480 mm/s, 520 mm/s
- Gradeability
8 %, 10 %
- Noise level
75 dB
Description
The origin of this truck lies in the automotive sector of south east Asia, where it is appreciated in large warehouses with racking systems.
Electric stand-on reach truck especially for narrow aisles and high racking use. Good efficiency on stacking, reaching. Floating balance driving system ensures comfortable control, fixed driving system ensures best stability.
The CQDS Series has many great features that will help you improve your daily operations.
HIGH QUALITY COMPONENTS
High quality components ensure the long long lifetime of the truck
Electric Stand-up Reach Truck 1.5t
Best Choice for Stacking in Narrow Aisles & High Racking;
Stand-on Operation Provides Broader View;
Electric Power Steering Control, Comfortable and Efficient;
None-floating drive system,solid stable in high position
